| 불규칙파 작용시 경사식구조물의 상치콘크리트에 작용하는 양압력: 비쇄파조건 |
| 이종인 |
| 전남대학교 공과대학 토목공학과 교수 |
| Uplift Pressure Acting on Crown Wall of Rubble-Mound Structure under Irregular Wave Conditions: Non-breaking Conditions |
| Jong-In Lee |
| Professor, Department of Civil Engineering, Chonnam National University |
| Corresponding author:
Jong-In Lee ,Tel: +82-62-530-5431, Email: jilee@jnu.ac.kr |
|
Received: September 29, 2025; Revised: October 14, 2025. Accepted: October 22, 2025. |
|
|
Share :
|
| ABSTRACT |
|

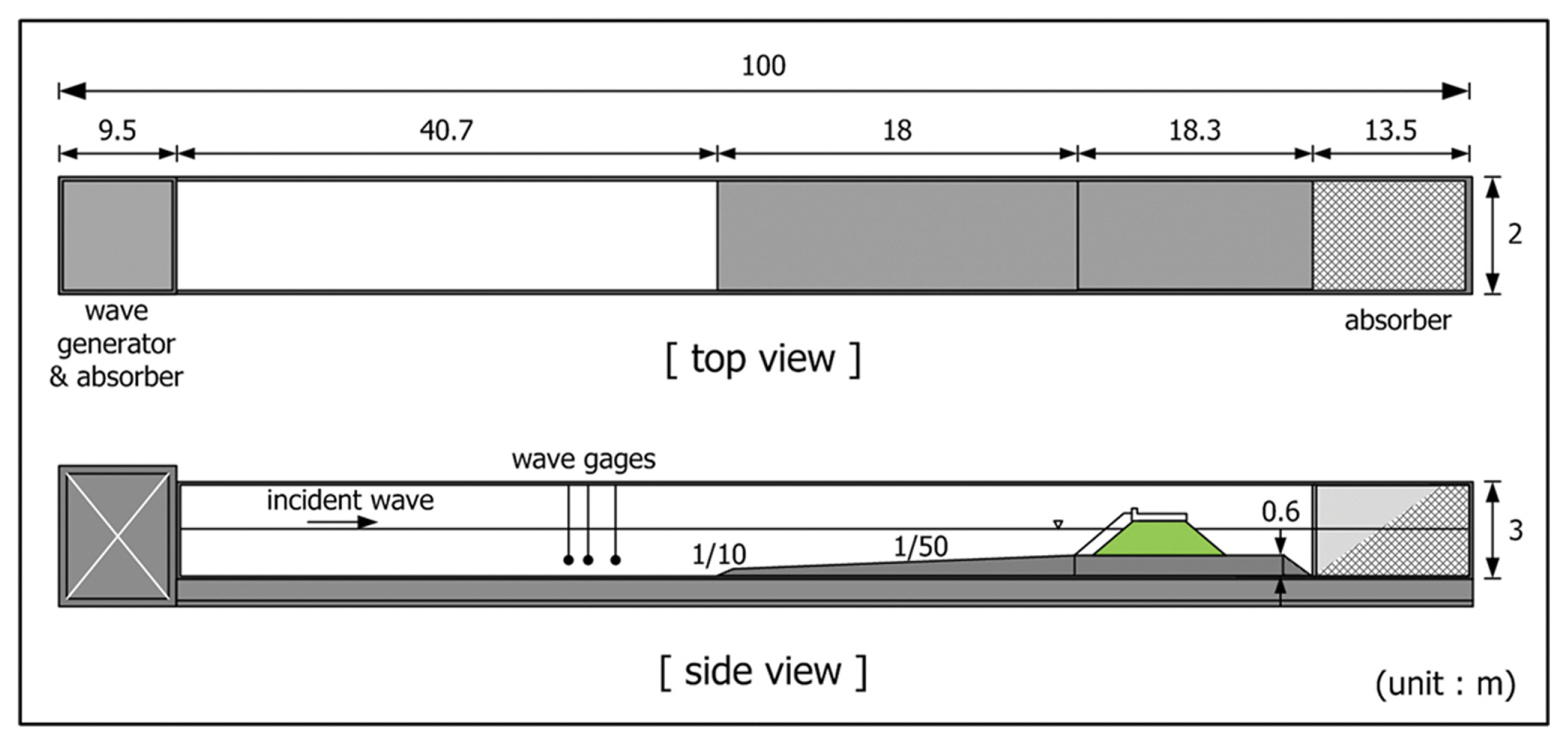

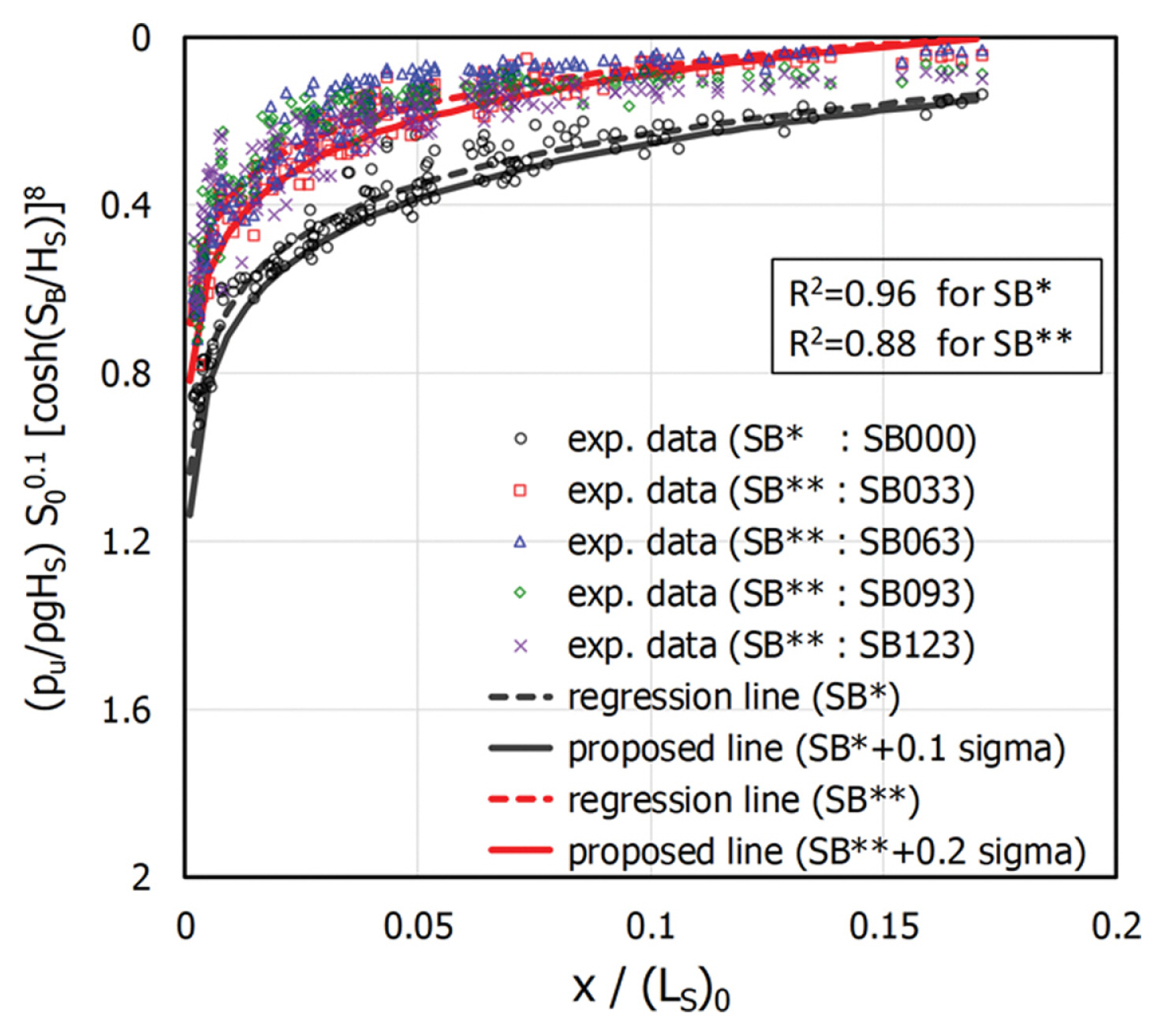

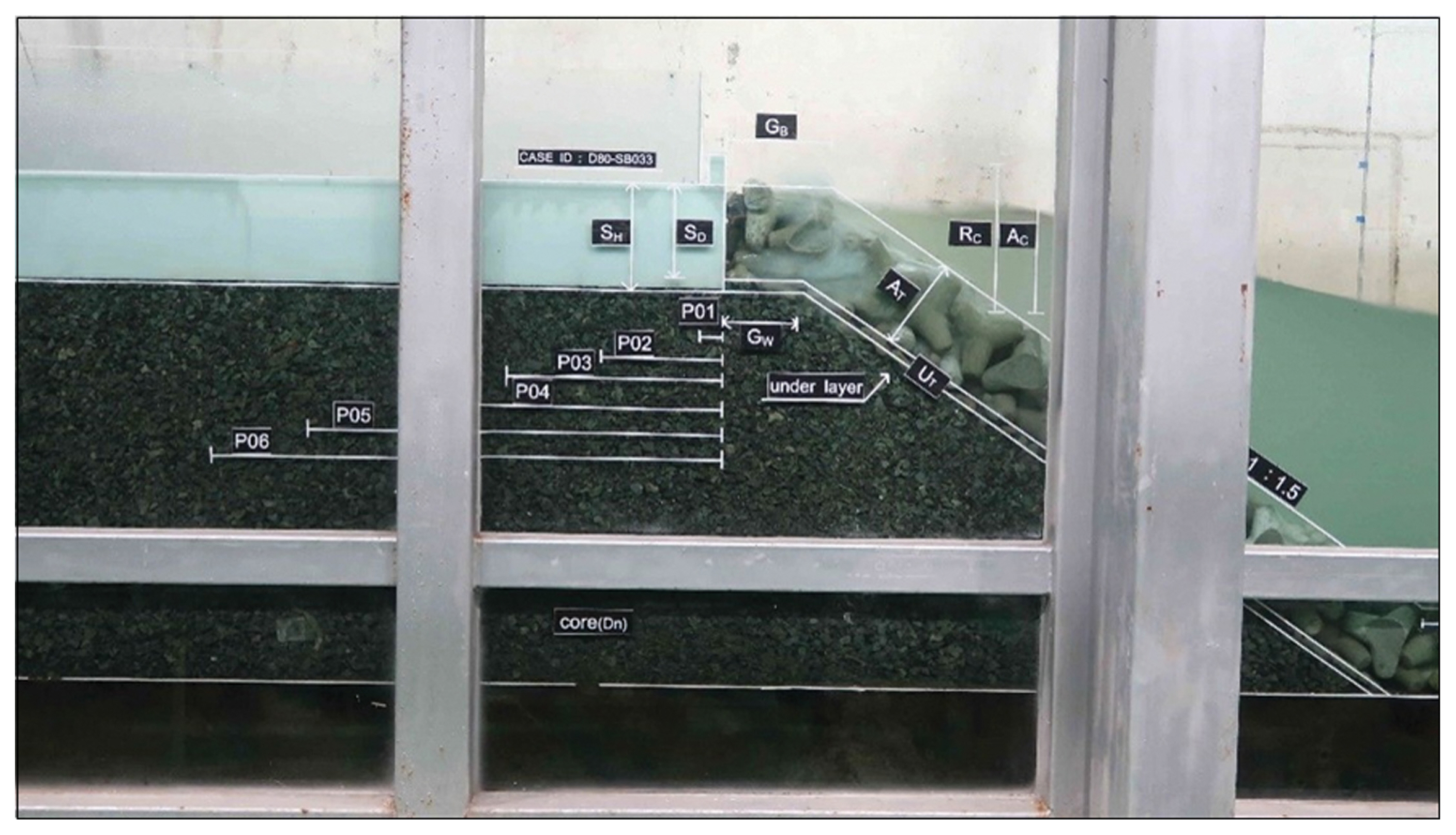

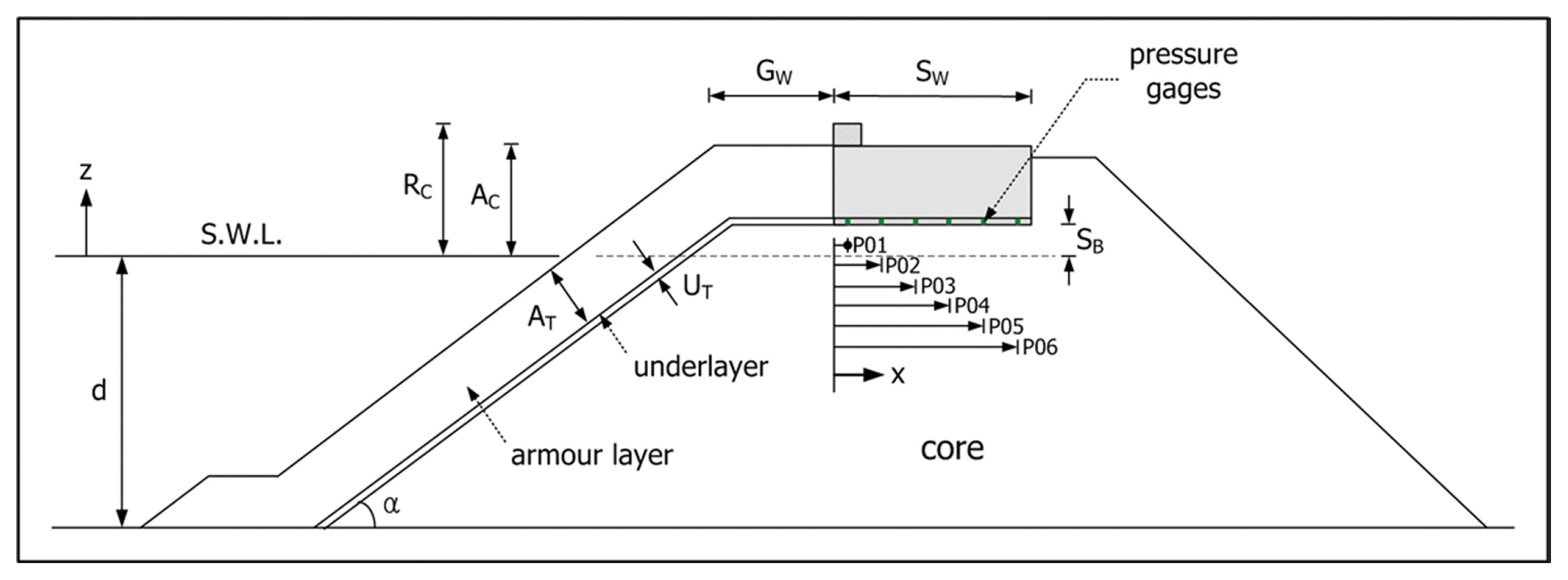

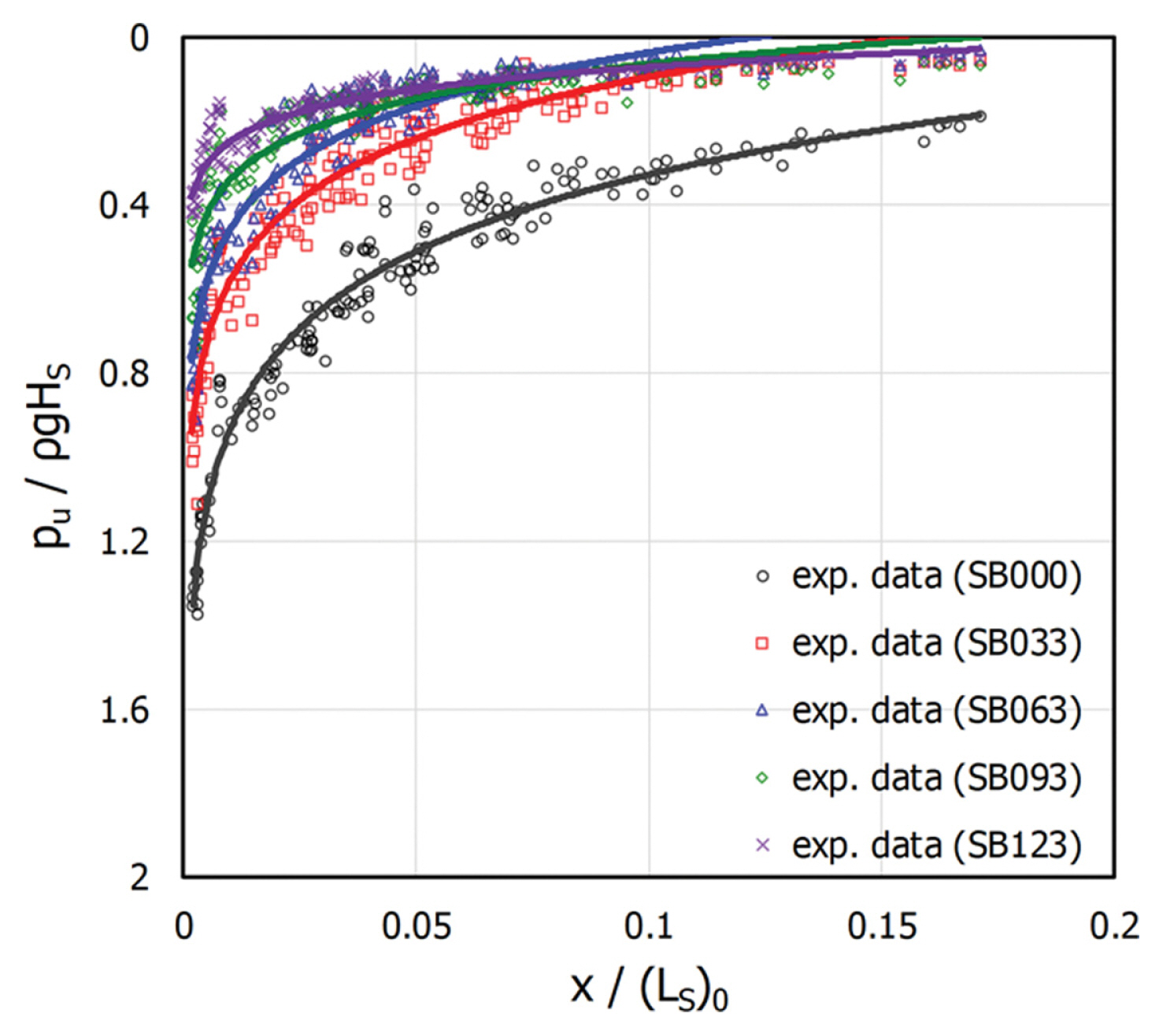

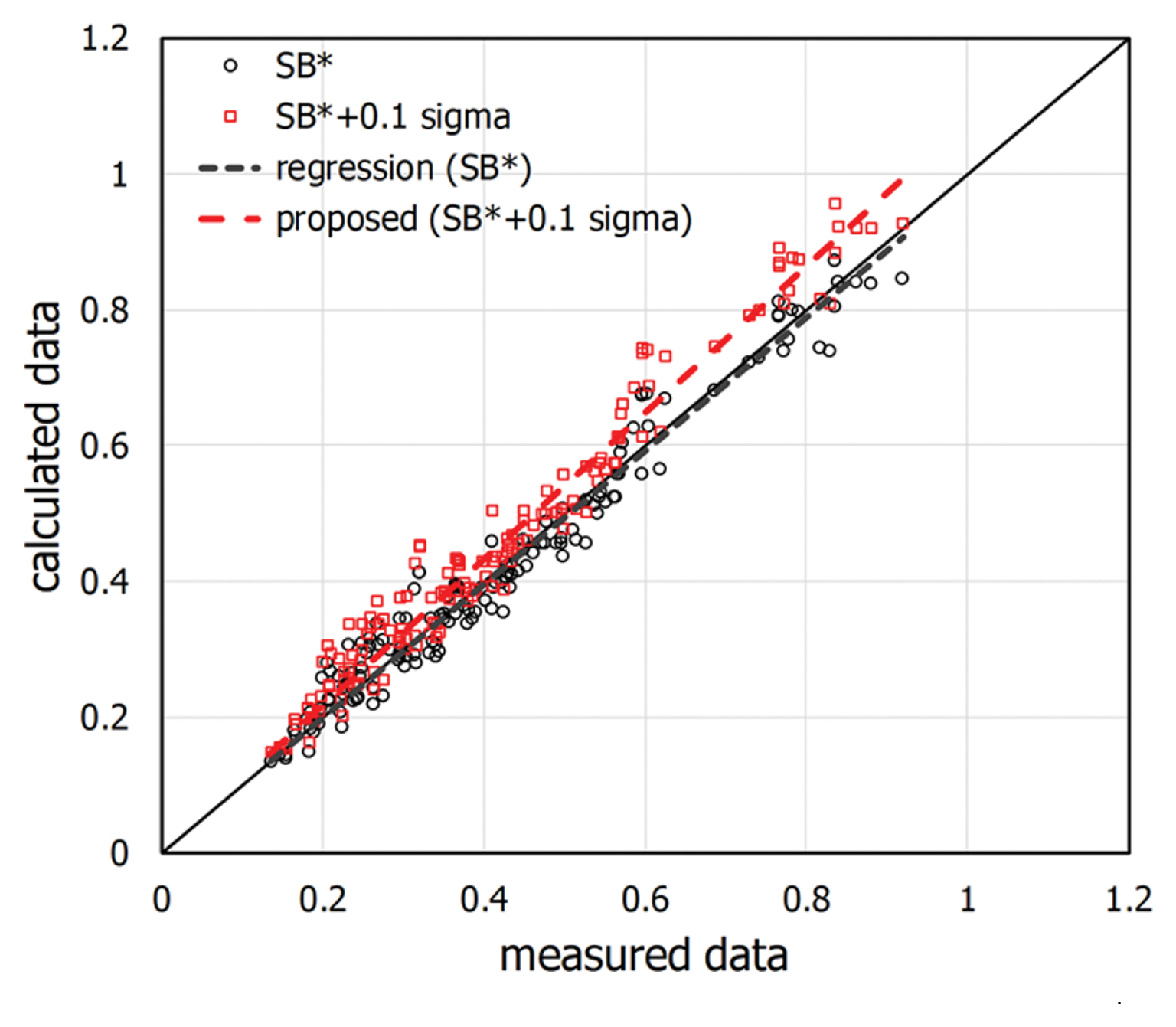

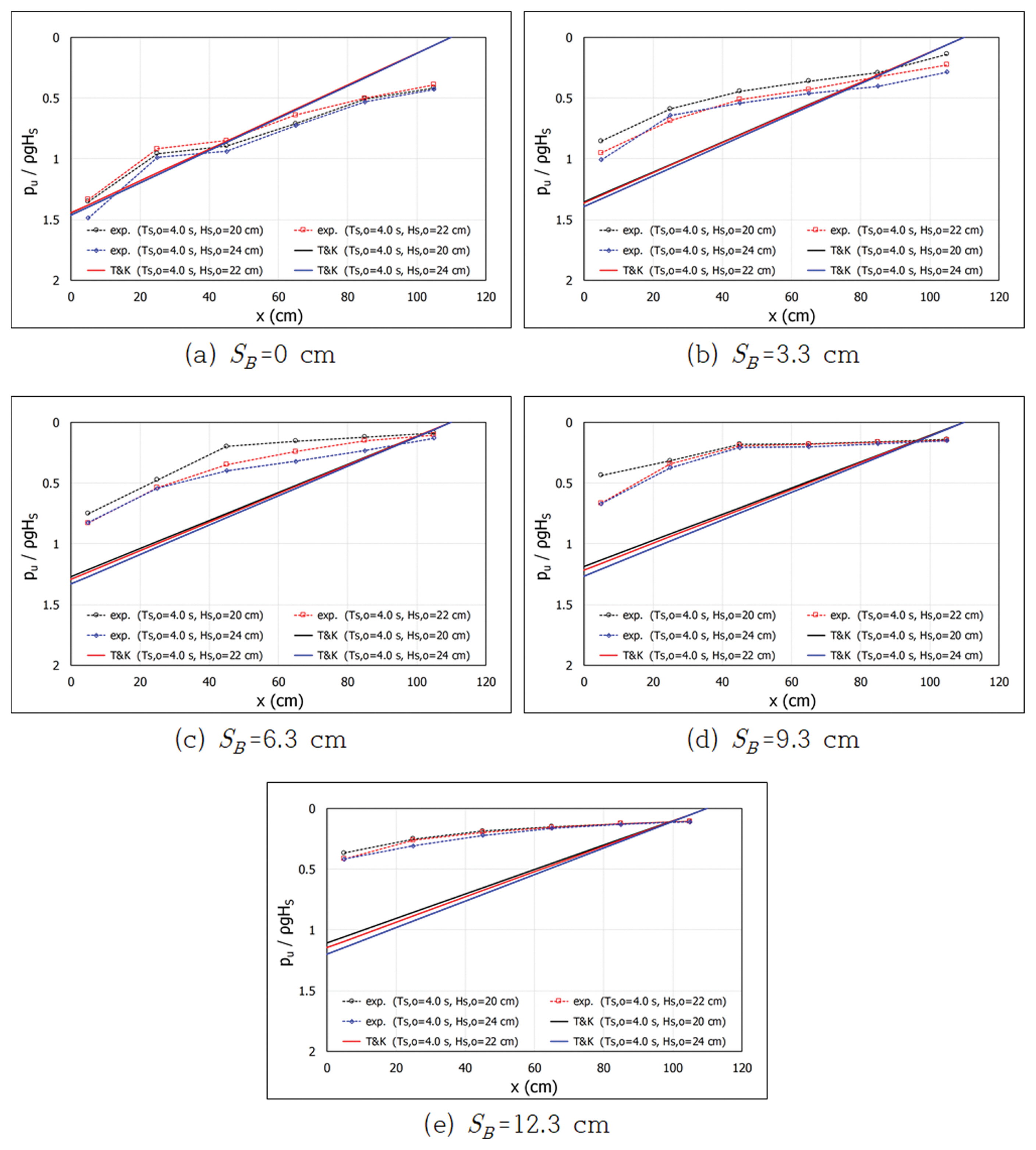

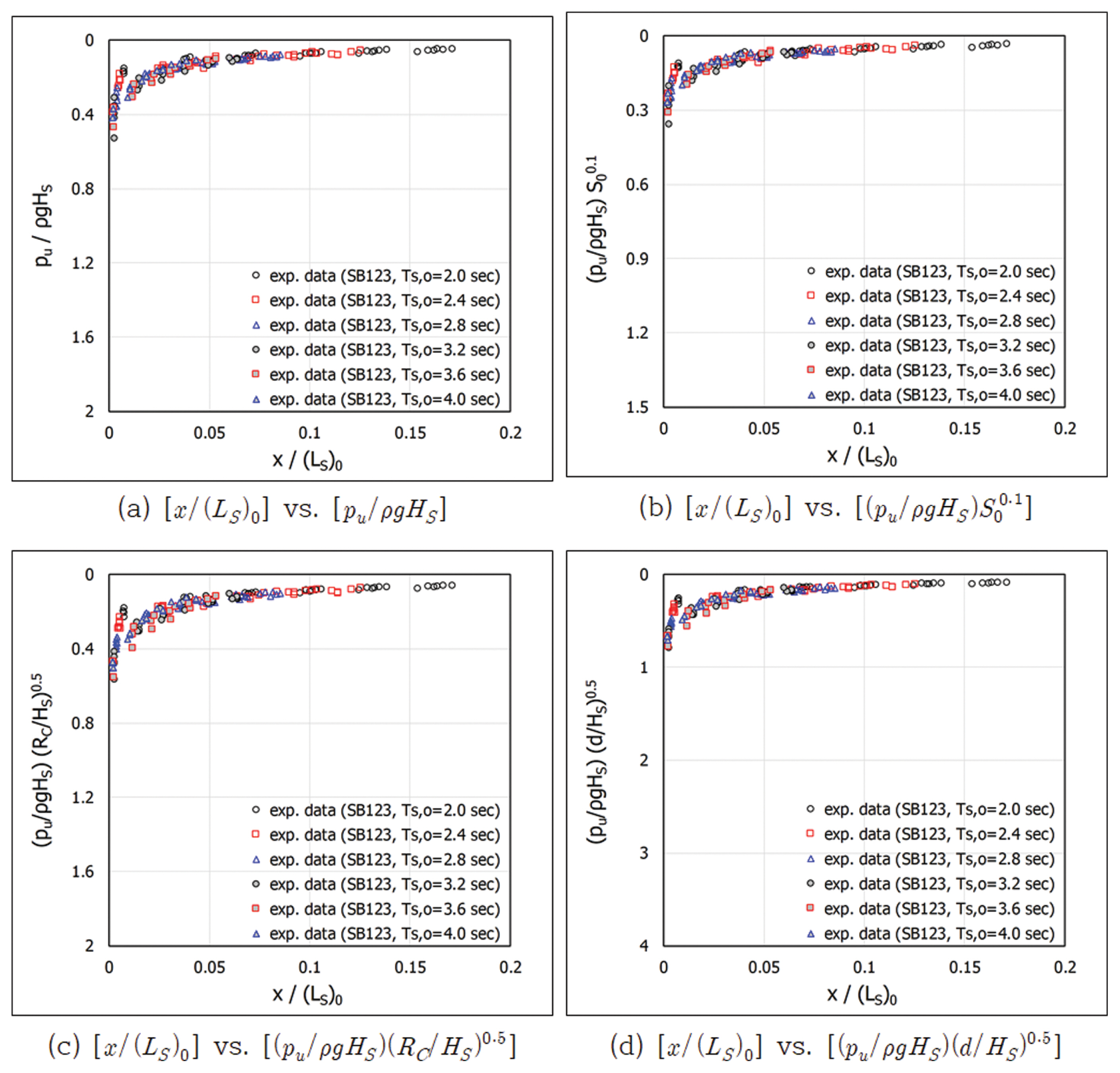

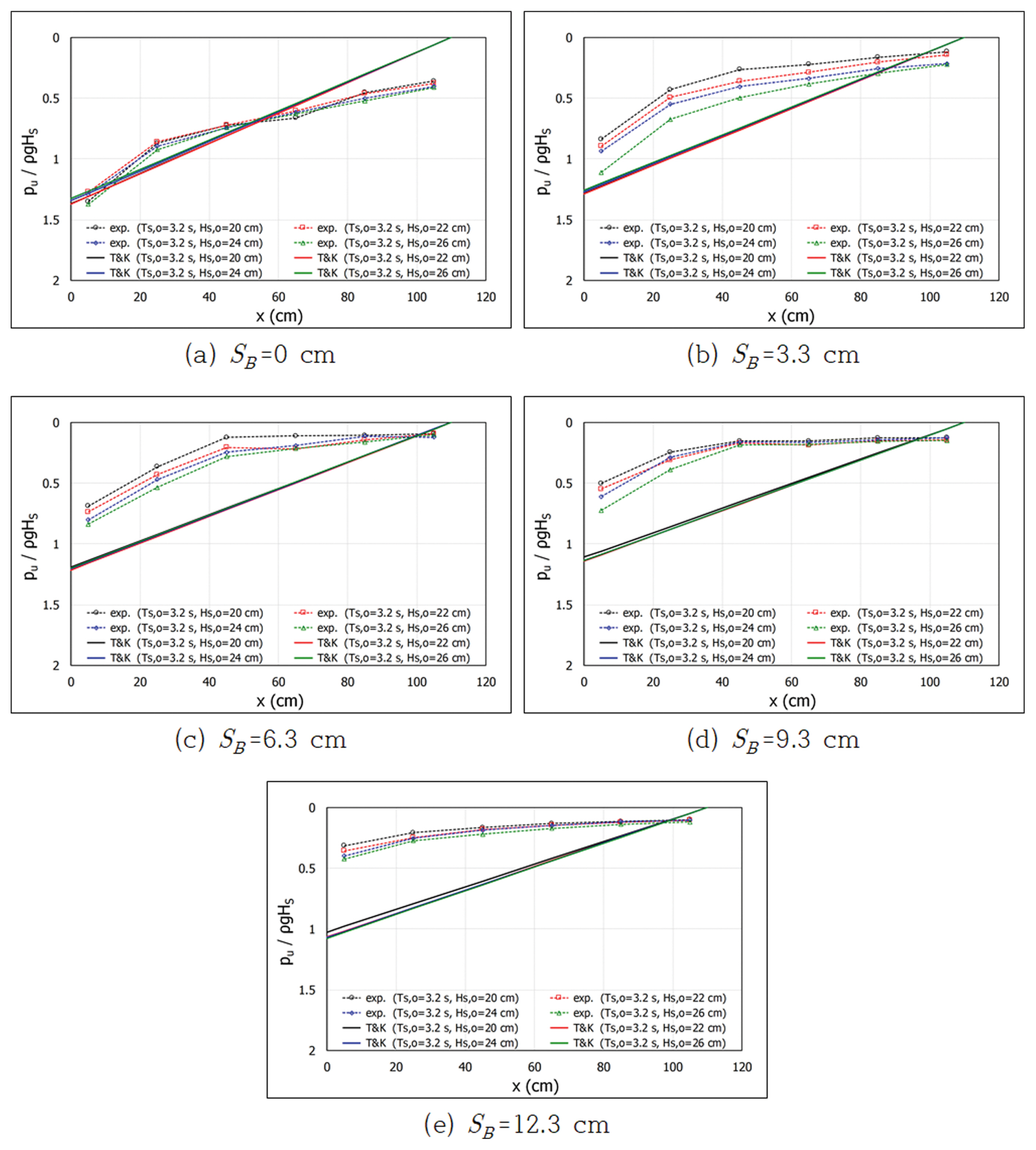

Domestic design standard do not include a method for estimating the uplift pressure acting on the crown wall of rubble mound structure, so a modified form of Goda’s formula is used. However, this method has not been clearly established. In this study, a two-dimensional hydraulic model experiment was conducted to examine the uplift pressure acting on the lower part of the crown wall of a rubble-mound structure. Model experiments were conducted on various wave conditions and bottom heights of the crown wall. The test wave is irregular waves under non-breaking wave. The uplift pressure was large at the front of the crown wall and decreased toward the rear. And the distribution of uplift pressure showed an exponential shape. The variable that had the greatest influence on the magnitude of the uplift pressure was the bottom height of the crown wall. An empirical formula for predicting uplift pressure was proposed using the results of experiments performed under various conditions. |
| Keywords:
rubble-mound structure, crown wall, uplift wave pressure, hydraulic model experiment, irregular wave |
|
