| 대칭형 오목부 구간에서 경사식구조물의 평균월파량 |
| 이종인1, 김영택2 |
1전남대학교 공과대학 토목공학과 교수
2한국건설기술연구원 수자원하천연구본부 선임연구위원 |
| Average Wave Overtopping of Rubble-Mound Structure on Symmetrical Concave Section |
| Jong-In Lee1, Young-Taek Kim2 |
1Professor, Department of Civil Engineering, Chonnam National University
2Senior Research Fellow, Department of Hydro Science and Engineering Research, Korea Institute of Civil Engineering and Building Technology |
| Corresponding author:
Young-Taek Kim ,Tel: +82-31-910-0654, Email: ytkim@kict.re.kr |
|
Received: September 1, 2025; Revised: September 22, 2025. Accepted: September 22, 2025. |
|
|
Share :
|
| ABSTRACT |
|

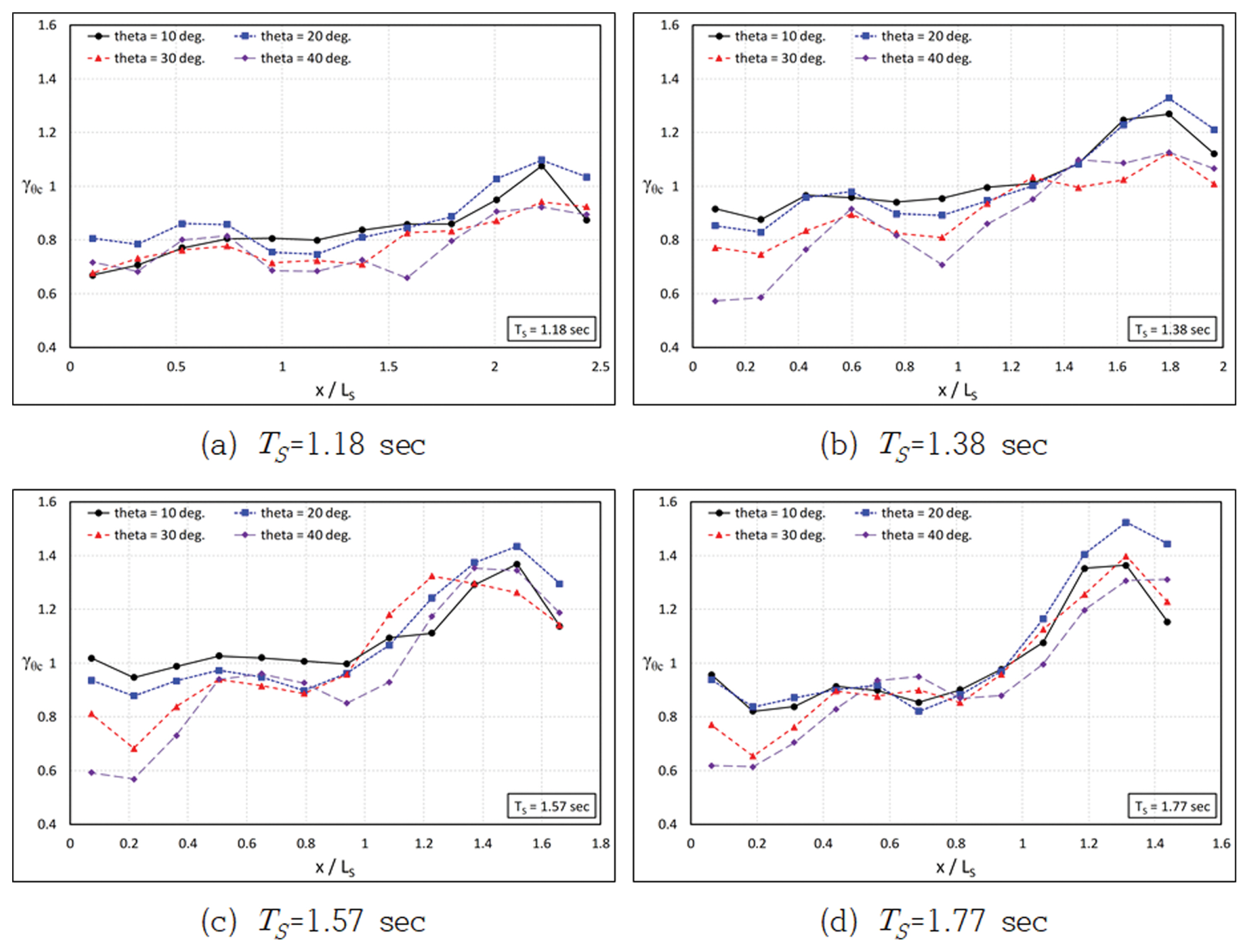

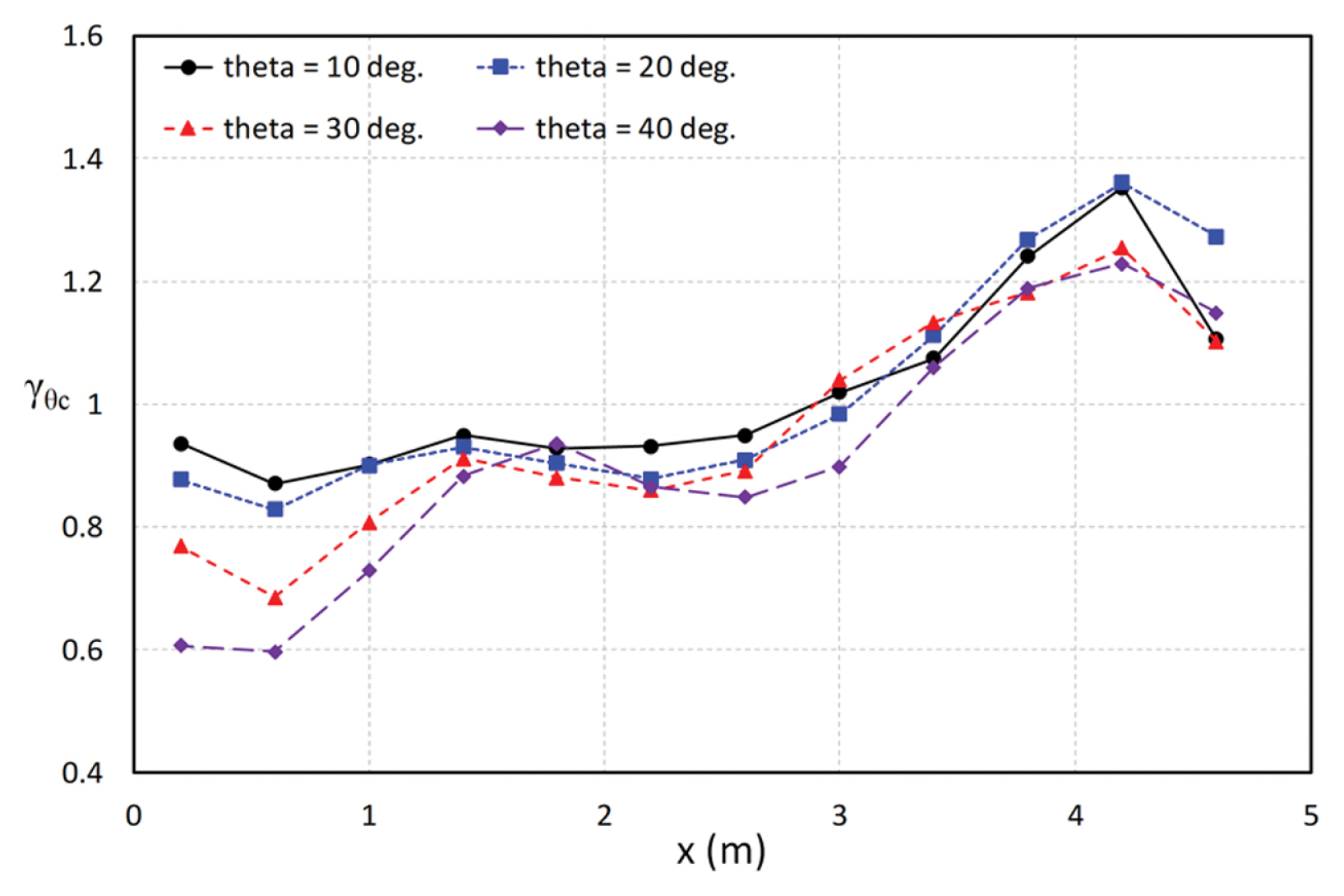

To study the influence of wave overtopping of rubble-mound structure at symmetrical concave section a three-dimensional physical model tests were carried out. Model tests were performed for measuring the wave overtopping under various wave condition, freeboard and concave section shapes. As the central angle of the concave area decreased, the average wave overtopping volume decreased. Modification factors were derived for each location along the concave section. The modification factor in the section close to the center of the concave area was found to be smaller than 1, and at the location after 1 wavelength, it was found to be larger than 1. The results of experiments are presented yielding a empirical modification factor to describe the influence of concave section on the average wave overtopping discharges of rubble-mound structure covered by tetrapods. |
| Keywords:
rubble-mound structure, three-dimensional physical model test, average wave overtopping discharge, concave section, modification factor |
|
